Pull Type Pulverizers are available in 10' to 16' widths. With your choice of 20" ductile iron wheels, 20" ductile iron crowfoot wheels, 20" notched gray iron wheels, or 18" smooth gray iron wheels. Ductile iron wheels carry a five year limited warranty against breakage. Tongue jack included. Drawbar Length 141".

During transport the machine weight is rotated over the tires which reduces the drawbar hitch weight. Ductile iron wheels carry a 5-year limited warranty against breakage. Machines are priced with tongue jack, safety warning lights, transport and hydraulic cylinder (less hoses). To complete the unit order the 5K719 Hydraulic Hose Kit and Tires.

Floating ring pulverizers feature the ability of the rings to follow the contours of the ground to provide uniform firming action. A variety of wheel diameters and tubes are available that allow the ring to float as much as 4" to match your field conditions. Floating Ring Pulverizer wheels are very aggressive and should not be used behind seeders and planters for firming purposes. Tires not included. The safety warning light kit is standard equipment.

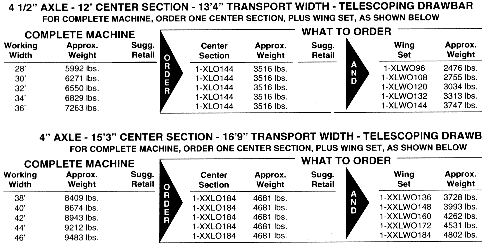

The "X" Series Pulverizers fold to an X configuration with transport heights under 7'10" depending on model. The automatic transport lock secures the machine when in transport and is automatically activated by the hydraulic system without operator assistance. Folded transport width is only 10'1". Drawbar length is 153" to reduce turning radius in the field. Ductile Iron wheels carry a 5-year limited warranty against breakage. Safety lights, wing lift and transport cylinders are included. Hoses are included up to hitch point. Tires not included.

The optimizer wheel has the weight required to break hard clods and firm seedbeds. It creates a firm and level seedbed without air pockets, minimizes moisture evaporation, increases the capillary action of water from below to the seed zone and improves chemical incorporation. Improved seed placement results in uniform germination, pollination and maturity. The soil surface is left in a condition that reduces wind erosion, water erosion, and surface crusting. Optimizer wheels interlock at the hub resulting in each section being driven as one gang. 20" Ductile Iron Wheels carry a 5 year limited warranty against breakage. Drawbar length telescopes from 13'11" to 19'1" on sizes 28' to 46'. Automatic transport lock, safety lights, hydraulic cylinders, and hoses are included. Dual wheels are standard on all folding models. Tires not included.
